AC Powered Mitre Saws

Scope of Delivery: - 1x cross-cut towing saw KS 120 REB KAPEX - 1x HW universal saw blade W 60 - 1x Angle clamp SM-KS - 1x Workpiece clamp KL-KS 120 - 1x Allen key SW 6 - 1x Operating instructions Product Description: The KS 120 REB is the new version of the successful KS 120 EB. The popular cross-cut towing saw now has a table extension that can be pulled out far for long workpieces and a new angle support. It impresses with its impressive cutting capacity and low weight. Its compact design means that it takes up little space, while its mobility and the fact that it can be used in different locations are a major advantage. Thanks to the special cross-cut position, it can be used to cut ceiling end strips as well as cornice profiles in the original wall position. The integrated special cross-cut position enables cutting depths of up to 120 mm. The double line laser and angle bevelling ensure the most accurate results and error-free angle transfer. The double ball-bearing double column guide and the fine adjustment, which can be operated from the front for millimetre-precise adjustment of the saw blade, allow work to be carried out at the highest level. Thanks to the FastFix function, working with the right material is no problem. The quick brake for planing, sawing and routing ensures maximum safety. Furthermore, the machine is designed for material-compatible work thanks to the process-controlled power electronics " Multi Material Control " ( MMC ) with adjustable and constant speed and temperature monitoring. The CLEANTEC bayonet lock serves as a connecting element between the machine and the suction cup. The KS 120 REB also has a sophisticated anti-static function. Technical Data: - Idle speed: 1 400 - 3 400 min-¹ - Power consumption: 1 600 W - Weight: 23.10 kg - Saw blade Ø: 260.00 mm - Cutting depth 45°/90°: 215 x 88 mm - Cutting depth 90°/90°: 305 x 88 mm - Cutting depth 45°/45° (right): 215 x 35 mm - Crown profile diagonal cut at 45°/90°: 168.00 mm - Tilt angle: 47/47 ° - Dimensions (WxDxH): 713 x 500 x 470 mm - Cutting depth 50°/90° (left): 196 x 88 mm - Cutting depth 60°/90° (right): 152 x 88 mm - Cutting depth 45°/45° (left): 215 x 55 mm - Mitre angle: 50/60° - Special cutting depth 90°/90°: 60 x 120 mm - Special cutting depth 45°/90° (left): 40 x 120 mm - Special cutting depth 45°/90° (right): 20 x 120 mm - Crown profile diagonal cut at 90°/90°: 168.00 mm - Working height: 900.00 mm - Dust extraction connection Ø: 27/36 mmSaws: Uncertainty (vibration) K: 1.50 m/s² - Sawing: A-weighted sound pressure level Lp: 88.00 dB(A) - Sawing: A-weighted sound power level Lw: 101.00 dB(A) - Saws: Total vibration mean value ah: 2.50 m/s² - Saws: EN 60745 series of standards: 61029-2-9 - Saws: Uncertainty (noise) K: 3.00 dB - For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!

Read more less

Scope of Delivery: - Festool KAPEX KS 60 cross-cut saw - 1x Festool HW universal saw blade W36 - 1x Festool FSZ 120 screw clamp - 1x LED impact light - 1x angle clamp - 1x Raiser - 1x operating tool Product Description: The power tool is intended as a stand-alone device for sawing wood, plastic, aluminium profiles and similar materials. Other materials, in particular steel, concrete and mineral materials, must not be processed. The KAPEX KS 60 is ideal for mobile use during assembly. It can also be used to cut boards and panels up to 305x60 mm to length and to cut mouldings, profiles and squared timber up to 60 mm thick. In combination with the angle beveller, it is possible to fit skirting boards and cover strips at an exact angle without having to calculate. The KAPEX KS 60 cross-cut saw from Festool impresses with its particularly flawless transfer of angles and thus prevents offcuts, which in turn saves material costs. The angle bevelling and LED light guarantee an optimum view of the workpiece at all times. The Festool double column guide guarantees safe and smooth guidance of the saw blade and the extendable table extension ensures clean working even with longer workpieces. The intermediate feet raise the table of the KAPEX KS 60 to the height of a SYSTAINER SYS 1 T-LOC and Classic. This means that longer workpieces are supported more securely. The cross-cut depth limiter ensures that grooves can be created quickly and the dust extraction unit, in combination with a Festool mobile dust extractor, extracts the dust where it is generated. The Festool saw blades are ideally matched to the KAPEX KS 60 and the materials. Technical Data: - Power consumption: 1200 W - Saw blade diameter: 216 mm - Idle speed: 1300-3500 min-1 - Tilt adjustment: 47°/46° - Mitre setting (right/left): 60°/60° - Max. Cutting range at 90°/90°: 305x60 mm - Max. Cutting area at 60°/90° right: 150x60 mm - Max. Cutting area at 45°/45° left: 215x40 mm - Max. Cutting area at 45°/45° right: 215x20 mm - Dimensions: 661x475x430 mm - Sound pressure level: 91 dB(A) - Sound power level: 100 dB(A) - Uncertainty (K): 3 dB(A) - For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!

Read more less

Scope of Delivery: - 1x Festool KS 120 cross-cut saw - 1x operating tool - 1x Festool HW universal saw blade W60 - 1x workpiece clamp - 1x angle clamp Product Description: The Festool KS 120 EB mitre saw impresses with its high precision and very compact and lightweight design. The machine is particularly suitable for fitting skirting boards and cover mouldings up to 120 mm, for cutting boards and panels up to 305 x 88 mm to length, for fitting cornice profiles up to 168 mm and for cross-cutting squared timber and beams up to 88 mm thick. Thanks to the front-operated fine adjustment, the Festool KS 120 EB ensures perfect results and millimetre-precise adjustment of the saw blade angle. The built-in laser ensures additional precision and safety when working. The angle bevelling ensures error-free angle transfer and the practical FastFix saw blade change allows you to always work with the right material. Technical Data: - Power consumption: 1,600 watts - Idle speed: 1,400 - 3,400 rpm - Saw blade diameter: 260 mm - Cutting depth 60°/90° right: 152 x 88 mm - Cutting depth 45°/45° right: 215 x 35 mm - Cutting depth 45°/45° left: 215 x 55 mm - Cutting depth 50°/90° left: 196 x 88 mm - Cutting depth 45°/90°: 215 x 88 mm - Cutting depth 90°/90°: 305 x 88 mm - Mitre angle: 50°/60° - Tilt angle: 47°/47° - Dimensions: 713 x 500 x 470 mm - Dust extraction connection: 27 - 36 mm - Weight: 21.5 kg - For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!

Read more less

Package contents: - 1x Festool KAPEX KS 60 Sliding Compound Mitre Saw - 1x Universal saw blade Festool HW W36 - 1x Fastening clamp Festool FSZ 120 - 1x Operating tool Product description: The Sliding compound mitre saw KAPEX KS 60 from Festool impresses with its particularly perfect angle transmission, which prevents scrap and saves on material costs. Festool saw blades are perfectly matched to the KAPEX KS 60 and the materials. It is ideal for mobile use during assembly. It can also be used for cutting boards and panels up to 305 x 60 mm and for end-cutting strips, profiles and squared timber up to 60 mm thick. Combined with the corner forge, it's possible to adjust skirting boards and finishing mouldings to the exact angle, without having to calculate. Technical specifications: Power consumption: 1200W Idle engine speed: 1300 - 3500 min-1 Saw blade diameter: 216 mm Inclination angle: 47°/46 Mitre angle (right/left): 60°/60 Max. cutting depth at 90°/90°: 305x60 mm Max. cutting depth at 60°/90° right: 150x60 mm 150x60 mm Max. cutting depth at 45°/45° left: 215x40 mm Max. cutting depth 45°/45° right: 215x20 mm Dimensions: 661x475x430 mm

Read more less

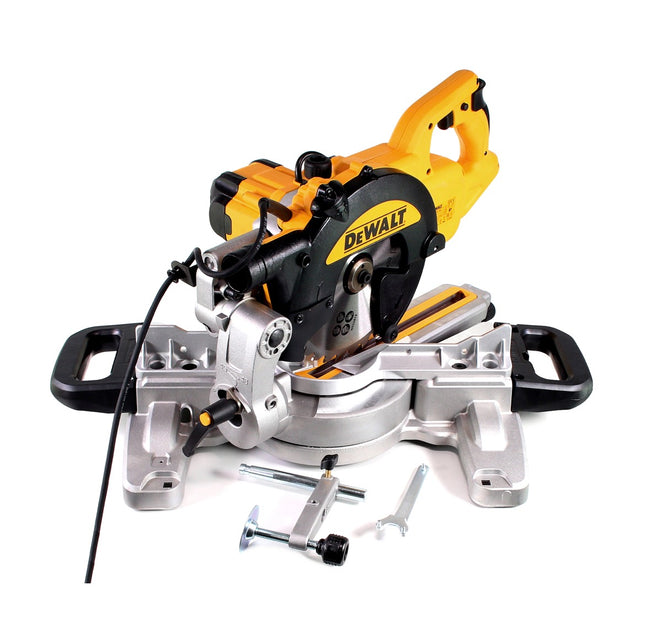

Alcance de la entrega: - 1x sierra de paneles DeWalt DWS 774 - Tecla L - Abrazadera de pieza de trabajo - Hoja de sierra HM de 24 dientes Descripción del Producto: La herramienta eléctrica está diseñada para utilizarse como dispositivo independiente para realizar secciones longitudinales y transversales con una trayectoria de corte recta en madera. La seccionadora extremadamente ligera es una todoterreno compacta y adecuada tanto para uso privado como para montaje. La herramienta es ideal para mecanizar fácilmente piezas de trabajo grandes con la máxima precisión. Gracias al nuevo motor de 1.400 vatios con suficiente reserva de potencia, la sierra de paneles también es adecuada para aplicaciones más exigentes. Un área de corte efectivamente iluminada y la pantalla de línea de corte XPS patentada garantizan resultados de corte más precisos. La sierra tiene una extracción mejorada y es compatible con AirLock. La placa base fresada plana y el tope están fabricados en fundición inyectada de aluminio de alta calidad. Las funciones de bloqueo seguras de la extensión y del cabezal de sierra facilitan el transporte sin problemas. Los ingletes estándar de 0°, 15°, 22,5°, 30° y 45°, así como el ajuste rápido y sin problemas de hasta 50°, se pueden ajustar de forma segura mediante pestillos fijos. El nuevo diseño del tope es ideal para cortes inclinados en piezas de trabajo más pequeñas. Las prácticas asas de transporte garantizan un transporte sencillo y un soporte de material más amplio. Una extensión de trombón interna con rodamientos lisos y de bolas SKF garantiza una gran capacidad de corte. Datos técnicos: Potencia de entrada: 1400 vatios Potencia de salida: 1100 vatios Velocidad de la hoja de sierra: 4500 rpm Diámetro de la hoja de sierra: 216 mm Orificio de la hoja de sierra: 30 mm Ajuste de inclinación: 48° Ajustes de inglete (derecha/izquierda): 48/48° Profundidad máxima de corte a 90°/45°: 270 x 48 mm Profundidad máxima de corte a 90°/90°: 62 x 265 mm Longitud máxima de corte a 90°/90°: 270 x 60 mm Profundidad máxima de corte a 45°/90°: 190 x 60 mm Longitud máxima de corte a 45°/90°: 190 x 60 mm Longitud máxima de corte a 90°/45°: 270 x 48 mm Área de corte máx. a 45°/45°: 190 x 48 mm Profundidad de corte máx.: 70 mm Peso: 12,0 kg Profundidad: 550 mm Longitud: 490 mm Altura: 590 mm Fuerza de vibración triaxial (aserrado de madera): 2,1 m/s² Factor de incertidumbre de vibración (K1): 1,5 m/s² Potencia sonora: 104 dB(A) Factor de incertidumbre de la potencia sonora: (K2): 3,9 dB(A) Presión sonora: 93 dB(A) Factor de incertidumbre de potencia sonora (K3): 3 dB(A) Si se utiliza con fines comerciales, ¡tenga en cuenta las normas de construcción!

Read more less
