Description

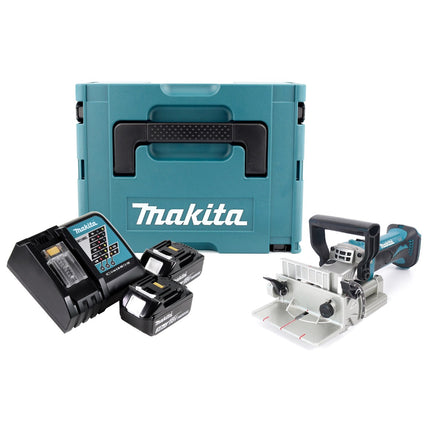

Scope of Delivery:

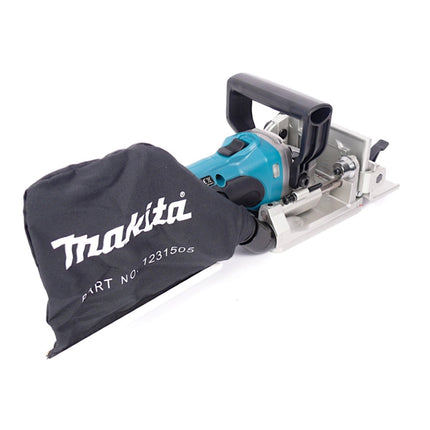

- 1x Makita BPJ 180 groove router/flat dowel router
- 1x dust bag
- 1x face spanner

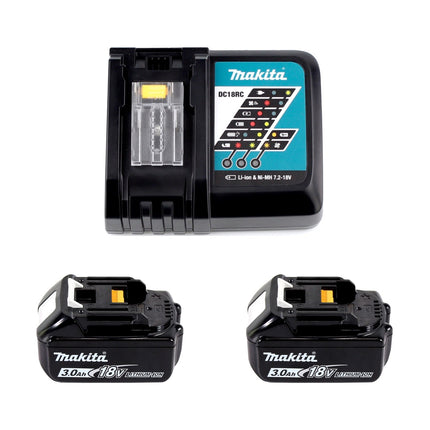

- 2x Makita BL 1830 B 3.0Ah rechargeable battery
- 1x Makita DC18RC quick charger

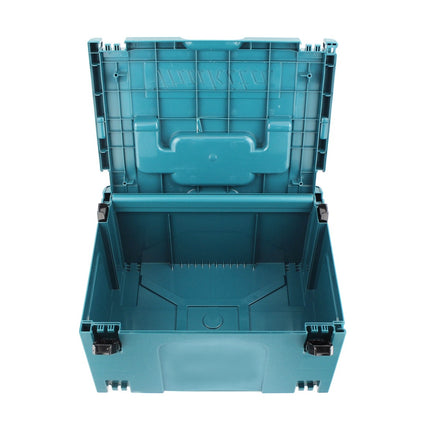

- 1x Makita Makpac 3 tool case

Product Description:

The power tool is used for milling crescent-shaped grooves by plunge cutting for inserting wooden connectors. The cordless groove cutter is suitable for all standard wooden flat dowels and precise milling depths. The machine has a continuously adjustable swivelling fence for any angle from 0° to 90°. This allows parts to be joined together at any conceivable angle. Setting the routing depth between 8 and 20 millimetres is made easier by a six-stage turret stop, which can be easily turned to, for example, lamello depth. The battery operation favours work in positions that are actually uncomfortable. The built-in warning light prevents the machine from starting when the battery is inserted. The dust bag included in the scope of delivery ensures clean working conditions.

Technical Data:

- Voltage: 18 V
- Max. Grooving depth: 20 mm
- Max. No-load speed: 0-6500 1/min
- Total length: 351 mm
- Weight: 3.0 kg
- Sound pressure level: 74 dB (A)
- Uncertainty (K): 3 dB (A)
- Vibration emission (groove milling in MDF): 2.5 m/s2 or less
- Uncertainty (K): 1.5 m/s2
- For commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Specifications

• Manufacturer: Makita
• Weight: 2800g
• Drive: Battery
• Voltage: 18V
• Battery capacity: 3.0Ah
• Vibration Uncertainty (K Factor): 1.5m/s²
• Length: 351mm
• Width: 139mm
• Height: 149mm
• No load speed: 6500rpm
• Sound pressure level: 74dB
• Max. vibration: 2.5m/s²
• Noise Uncertainty (K Factor): 3dB
• Max. cutter Diameter: 100mm
• Miter: 0-90 °
• Max. cutting capacity: 20mm
• Max. cutting depth: 20mm
• Groove width: 4mm
