Description

Scope of Delivery:

- 1x Makita DPJ 180 cordless slot cutter
- 1x front clamp ( 415579-2 )
- 1x dust bag ( 123150-5 )
- 1x slot cutter 100 mm (B-20644)
- 1x face spanner
- without battery, without charger

Product Description:

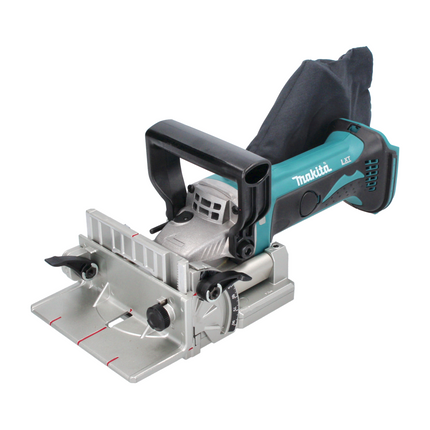

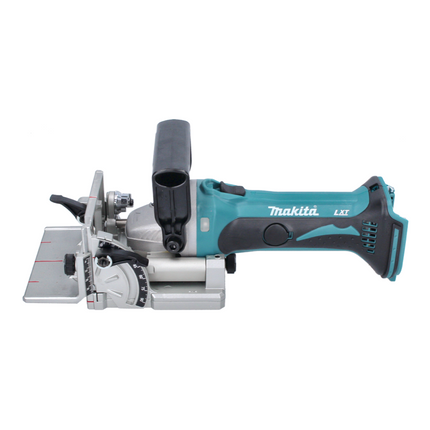

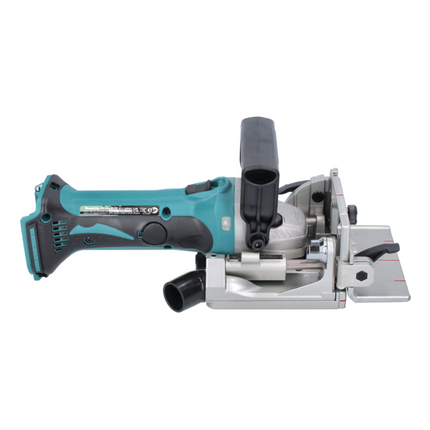

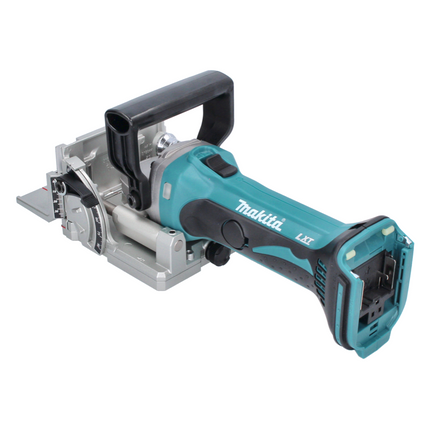

The handy and short Makita DPJ 180 cordless groove cutter is ideally suited for all standard wooden dowels as well as for sawing shadow gaps on walls and ceilings. The DPJ 180 offers 6 different settings that can be made with a depth adjustment screw as well as precise and smooth rack and pinion depth adjustment of the angle fence. Furthermore, the angle fence lock on the cordless groove router can be operated with just one clamping lever and the swivelling fence is infinitely adjustable from 0° to 90° with detents at 0°, 45° and 90°.

Technical Data:

- Manufacturer: Makita
- Manufacturer designation: DPJ 180
- Battery voltage: 18 V
- Battery system: LXT
- Idle speed: 6500 min-¹
- Adjustable swivelling fence: 0 - 90 °
- Milling cutter: 100 x 4 x 22 mm
- Maximum cutting depth: 20 mm
- Cutting capacity: 0 - 20 mm
- Weight incl. battery (EPTA): 2.8 - 3.1 kg
- Product dimensions (L x W x H): 351 x 139 x 149 mm
- Sound pressure level (LpA): 74 dB(A)
- K-value noise: 3 dB(A)
- Vibration: ≤ 2.5 m/s²
- K-value vibration: 1.5 m/s²
- For commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Specifications

• Fabricante: Makita
• Peso: 3415g
• Unidad: batería
• Voltaje: 18V
• Vibración valor K: 1,5 m/s²
• Longitud: 405 mm
• Ancho: 205 mm
• Altura: 170 mm
• Velocidad máxima de ralentí: 6500 rpm.
• Nivel de presión sonora: 74 dB
• Vibración máx.: 2,5 m/s²
• Ruido del valor K: 3 dB
• Ø cortador máx.: 100 mm
• Capacidad de corte máx.: 20 mm
• Profundidad de fresado máx.: 20 mm
