Description
Scope of Delivery:

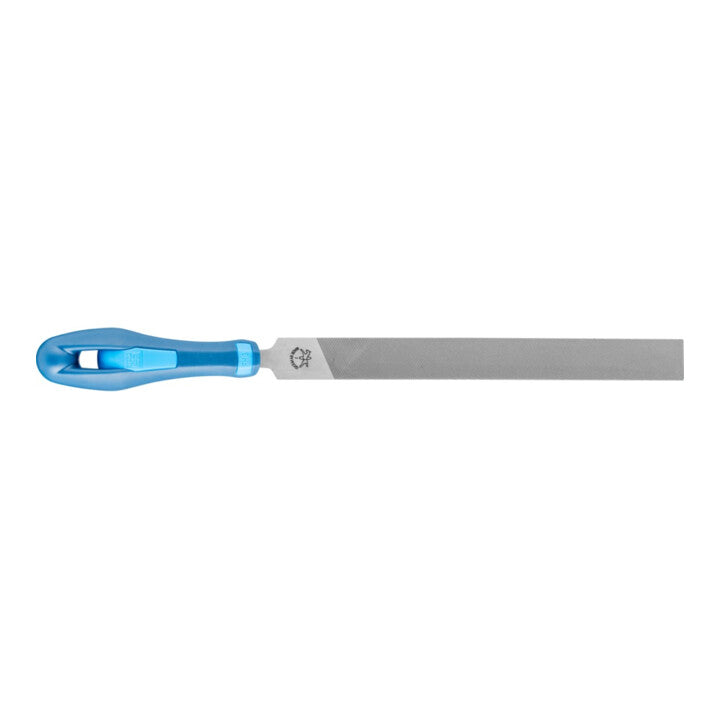

- Workshop file DIN 7261 Length 150 mm Cross-section 16 x 4 mm
Product Description:

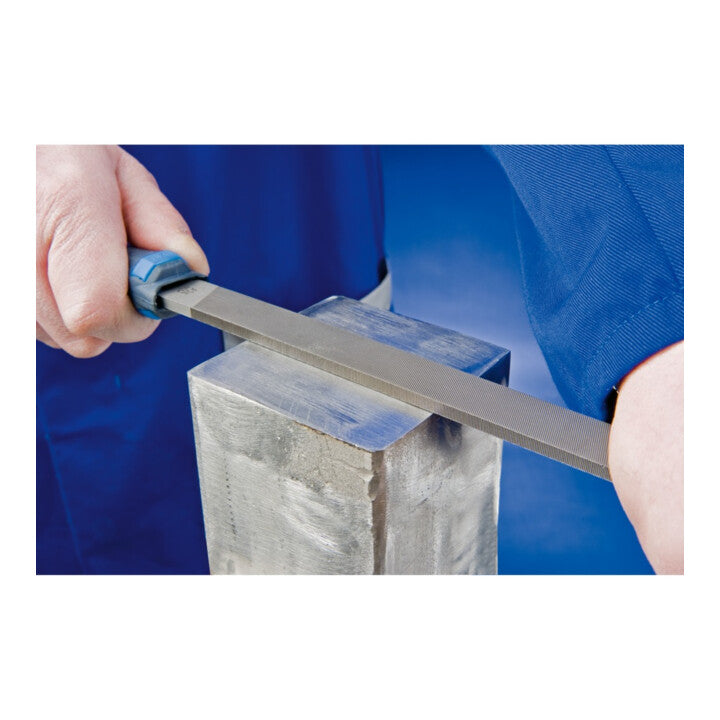

flat blunt - with ergonomic file handle - shape A - rectangular file with cut on three sides - one side uncut - for processing right-angled geometries - also suitable for bronze, copper, brass and zinc
Technical Data:
- Handle: FH 3
- Drive type: Manual use
- Application recommendation: Use the files universally for various applications in the workshop.
- Machinable materials: Grey/spheroidal cast iron (GG/GJL, GGG/GJS), zinc, steel, cast steel, aluminium, copper, cast steel, bronze, brass, steels up to 1,200 N/mm² (< 38 HRC)
- Machining tasks: Surface processing, rounding, finishing, deburring, chamfering, edge processing (chamfering, rounding)
- Width: 16mm
- Note: PFERDERGONOMICS recommends the ergonomic file handle for comfortable working.
- Height: 4mm
- PFERD type: 1112
- Advantages: Consistently high removal rate from the tip to the tang. Long service life. Application-orientated design.
For commercial use, please observe the building regulations!
