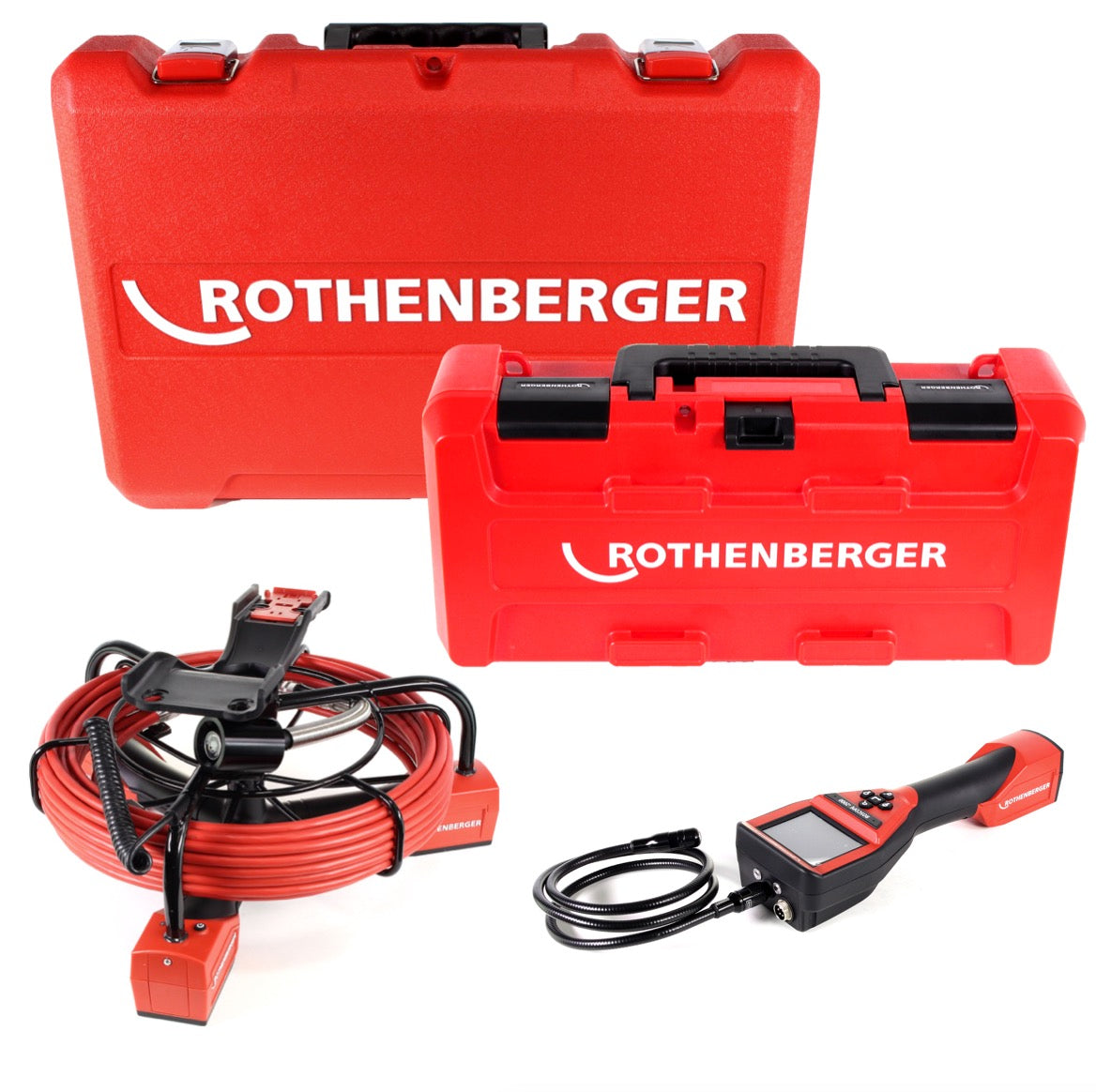

Package contents:

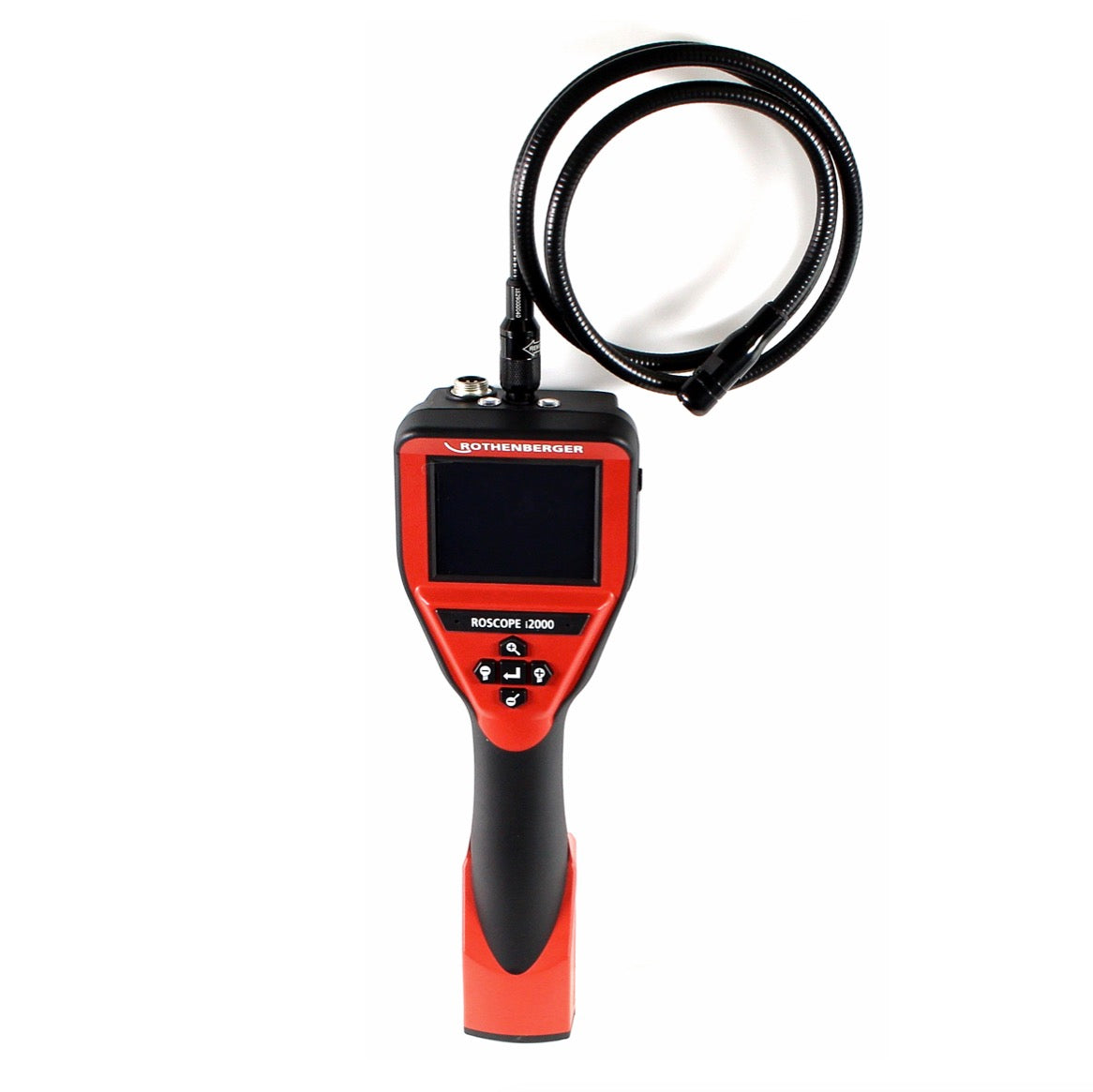

- 1x Rothenberger Roscope i2000 Inspection Camera in Case ( 1500000696 )
- 1x Rechargeable Li-Ion Battery
- 1x Charger - supplied with a selection of adapters for use in different countries
- 1x USB cable
- 1x Gooseneck 1.2 m (A connector, colour black) TEC module (69601)
- 2x Manuals, CDs
- 1x SD card
- 1x Blow moulding box

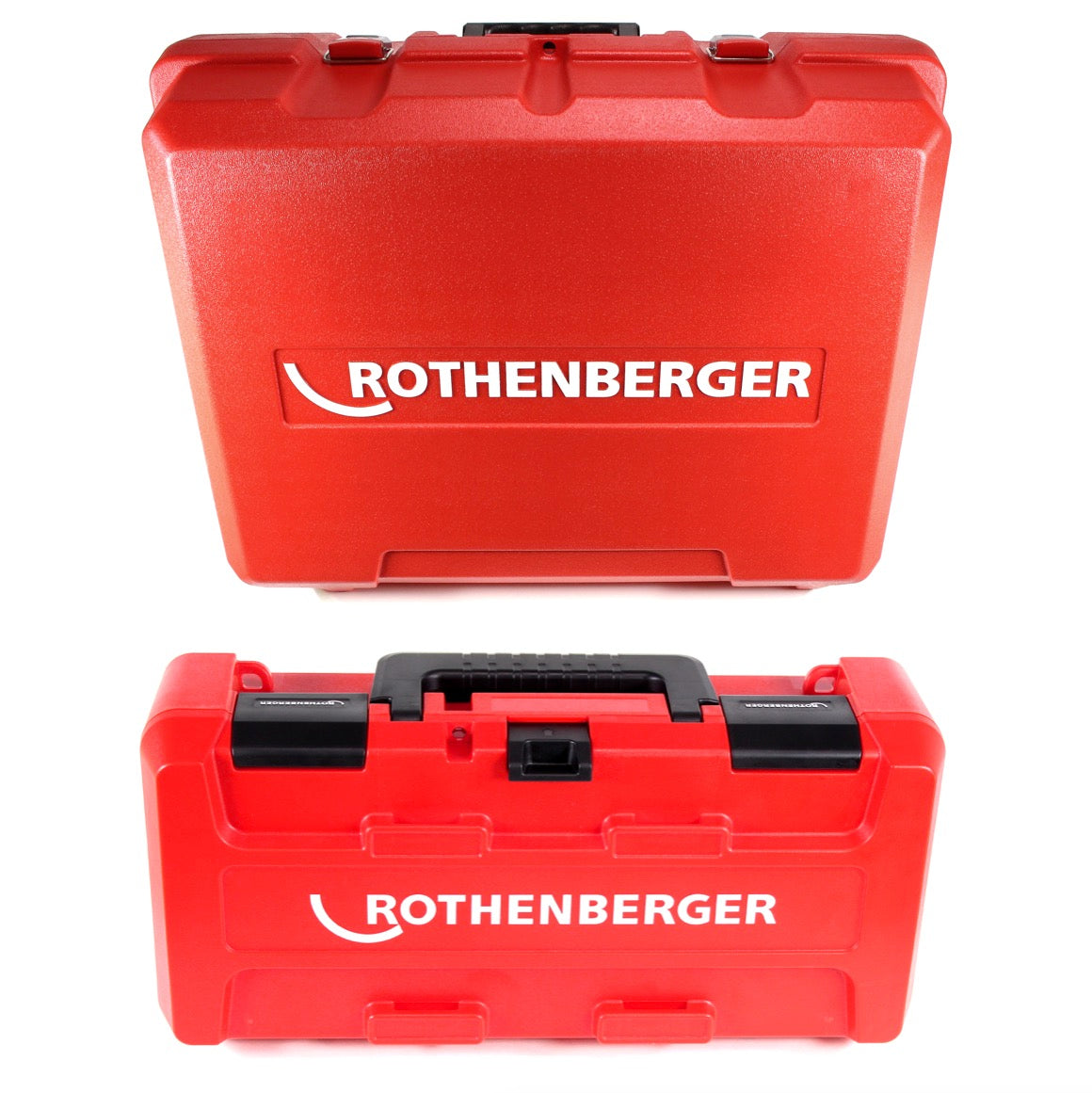

- 2x Carry cases

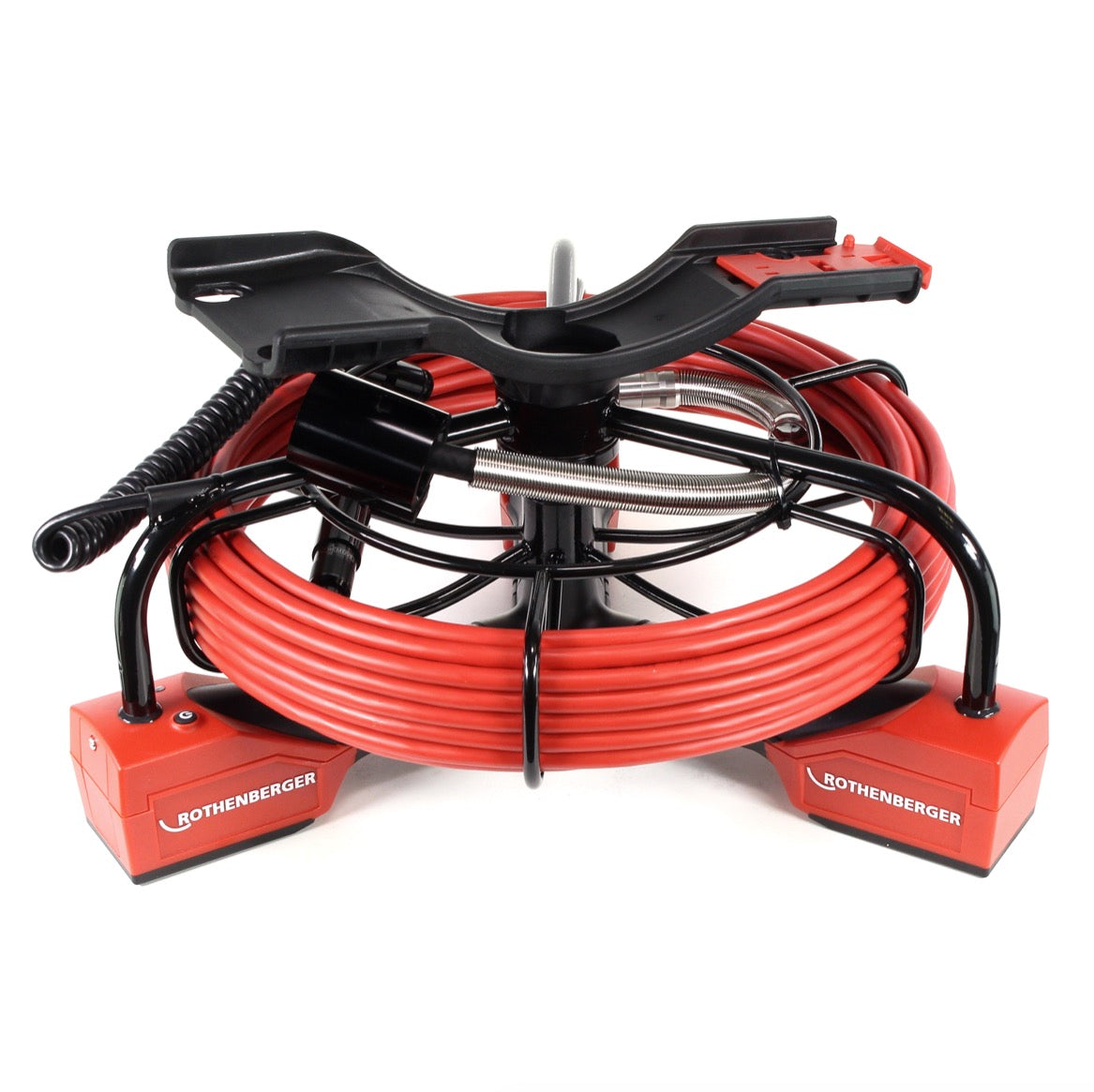

- 1x Rothenberger ROSCOPE MODUL 25/16 ( 1500000052 )
- 2x Batteries AA-Kadmium
Product description:
The ROSCOPE i2000 inspection camera combines state-of-the-art camera technology with precise detection technology and, thanks to its modular structure, it is a complete set for the inspection of pipes and cavities. Thanks to the built-in WiFi technology, images and videos are transferred directly to your mobile device. This camera can quickly, easily and professionally inspect and analyse the problem. Its touch screen is intuitive and menu navigation is very simple. Moreover, a self-aligning IP 68 waterproof camera head is integrated on this device. The inspection can be recorded and played back on video (AVI) and photo (JPEG).
Technical specifications:
Data inspection camera:
Viewing distance: 5 cm - 30 cm (2" to 12")
Input voltage: 100 - 240 V AC, 50 - 60 Hz, 0.3 Amp.
Max. inrush current: 15 A at 115 V AC, 30 A at 230 V AC 5 V DC 1.2 A Max. output voltage: 1.5 A Max. output voltage: 1.5 A
Standby power consumption without load: <0.3 W
Operating temperature: 0 °C to 40 °C
Storage temperature: -20 °C to 60 °C
Relative humidity: 20% to 80%, non-condensing
Internal Li-Ion battery: 3.7 V, 5,200 mAh, 19.24 watt hours
Estimated duration: 3 to 5 hours in continuous operation (Actual battery life depends on the intensity of the LED image indicators and the use of the terminal's external lights).
Battery charging time: Approximately 5 hours when the units are switched off (Note - charging will take much longer if the unit is switched on during charging).
Weight: 0.95 kg
Dimensions: Length: 35 cm (13.80 ")
Width: 10.8 cm (4.25 ")
Height: 7 cm
Display: Resolution: 320 x 240 RGB
Screen type:, 5" TFT LCD with touch screen
Operating environment: Temperature: 0 °C to 40 °C
Humidity: maximum 95% non-condensing (display unit)
Storage temperature: -20 °C to 60 °C
Waterproof: Imaging head and extensions up to 9 m (30 ') deep
NOTE: The handset is not waterproof and moisture-proof!
Cable length: 1.2 m (4 ft.) to 9.7 m (32 ft.) with optional extensions.
Image resolution: 720 x 480
Video resolution: 640 x 480
Memory: SD card included for storage
Computer interface: USB (cable included)
Data module 25/16:
Visible distance: 75 mm to infinity (3" to infinity)
Power supply: AA cadmium batteries
Estimated battery life: 1 hour, automatic shutdown / 8-10 hours (if the sensor is on and the transmission is working)
Weight: 3.29 kg
Dimensions (length x width x height): 38.1 x 38.1 x 22.9 cm
Operating environment: Temperature: 0 to 40°C
Humidity: maximum 95% non-condensing (display unit)
Storage temperature: -20 °C to 60 °C
Water resistant: camera head and cable up to 16 m (52.5" deep)
Sensor transmission frequency: 512 Hz
